Safety Operation Shampoo Mixing Machine / Industrial Cosmetic Equipment 100L
Vacuum Planetary Mixer description
1. The mixing system is designed for manufacturing cream, lotion, syrup etc. with different features
2. The speed of mixing and homogenizing system can be adjusted according the different process technologies
3. The digital time and temperature indicator are set on the control cabinet. User will detect the working time and temperature easily
4. Homogenizing is processed by CNC lathe and applies Japan and German technology to achieve fine and smooth material
5. Vacuum system makes the whole operation in the vacuum condition so that there are no bubbles in material.
Vacuum Planetary Mixer Main composition
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, electric control system (PLC is optional), operation platform, etc.
Vacuum Planetary Mixer Usage and application field
The product is mainly applied in such industries as daily chemical care products, bio pharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for material of high base viscosity ad high solid content.
|
Model
|
Capacity |
Emulsifying motor |
slow mixer motor |
Machine dimension |
Total power(KW) |
| KW |
RPM |
KW |
RPM |
LENGTH |
WIDTH |
HEIGHT |
Lifting hight |
| ZRJ-20 |
20L |
2.2 |
1150-3500 |
0.37 |
10-40 |
1800 |
1600 |
1850 |
2700 |
5 |
| ZRJ-50 |
50L |
3 |
1150-3500 |
0.75 |
10-40 |
2700 |
2000 |
2010 |
2700 |
7 |
| ZRJ-150 |
150L |
4 |
1150-3500 |
1.5 |
10-40 |
3110 |
2100 |
2200 |
3100 |
11 |
| ZRJ-200 |
200 |
5.5 |
1150-3500 |
1.5 |
10-40 |
3150 |
2200 |
2200 |
3100 |
12 |
| ZRJ-350 |
350L |
7.5 |
1150-3500 |
2.2 |
10-40 |
3650 |
2650 |
2550 |
3600 |
17 |
| ZRJ-500 |
500L |
7.5 |
1150-3500 |
2.2 |
10-40 |
3950 |
2800 |
2700 |
3950 |
19 |
| ZRJ-750 |
750L |
11 |
1150-3500 |
4 |
10-40 |
3800 |
3200 |
3050 |
4400 |
24 |
| ZRJ-1000 |
1000L |
15 |
1150-3500 |
4 |
10-40 |
3900 |
3400 |
3150 |
4550 |
29 |
| ZRJ-1500 |
1500L |
18.5 |
1150-3500 |
7.5 |
10-40 |
4000 |
4100 |
3750 |
5650 |
42 |
| ZRJ-2000 |
2000L |
22 |
1150-3500 |
7.5 |
10-40 |
4850 |
4300 |
3600 |
NO LIFTING |
46
|
NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
Product Tags:
|
|

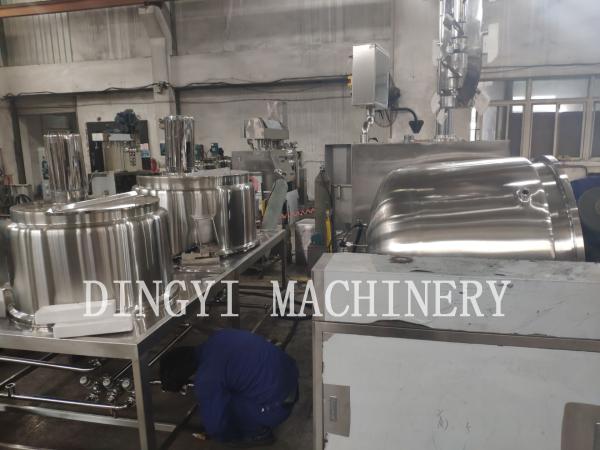

Safety Operation Shampoo Mixing Machine / Industrial Cosmetic Equipment 100L Images
|
